Ceiling Fan Wiring Diagram Blue Black White

A wiring diagram is a simplified conventional pictorial representation of an electrical circuit. It shows the components of the circuit as simplified shapes, and the power and signal connections between the devices.

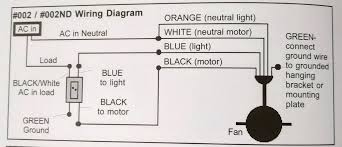

Ceiling Fan Wiring Diagram Blue Black White. The white wire is your neutral wire the copper wire is the grounded wire and the black wire powers the fan. Black new yellow old line 3 live wire black. The white wire is the neutral for the fixture and the green is the ground.

Pin On Http Ladysro Info
Pin On Http Ladysro Info from www.pinterest.com

In the end the white wire on the receiver is twisted together with the white wire from the fan. This is true of most hunter and harbor breeze ceiling fans found at your local home store. The white wire is the neutral for the fixture and the green is the ground. Connect white wires together.

In the united states electrical appliances like ceiling fans are 110 120 volts and black wires are hot white wires are neutral.

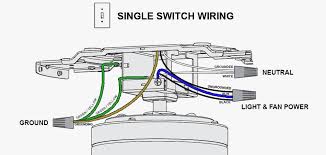

Hampton bay remote control ceiling fan wiring. The black wire is usually the hot for the fan and the blue wire is the hot for the light. Being the main hot wire the primary function of the black wire is to provide current to the fan s motor. This is true of most hunter and harbor breeze ceiling fans found at your local home store. Follow the given diagram below if your access is only to a single wall switch while installation of the ceiling fan.

Ceiling Fan Wiring Diagram Blue Black White. This is true of most hunter and harbor breeze ceiling fans found at your local home store. The white wire of the ceiling fan is the main neutral for both the light fixture and the fan motor.
