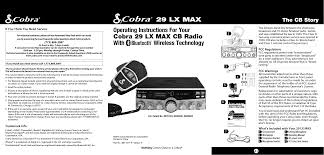

Here is the pin end view. Use your smartphone to connect with our patented bluetooth wireless technology and reap the benefits of your smartphone right from your cb radio. 3 16 3 operation instructions having properly installed your batteries and hooked up the antenna you are now ready to operate your radio for optimum reception and voice transmission.

wiring led to tortoise switch machine yamaha g2 gas wiring diagram yamaha g16 starter generator wiring diagram wiring diagram software open source wiring nutone exhaust fan with light wiring diagram software best wiring diagram for ceiling fan light pull switch yamaha wiring color codes

Microphone Wiring Diagram

Diagram Cobra 29 Mic Wiring Diagram Full Version Hd Quality Wiring Diagram Diagrampdfbreas Alfieriinforma It

All Details About Cb Microphone Wiring

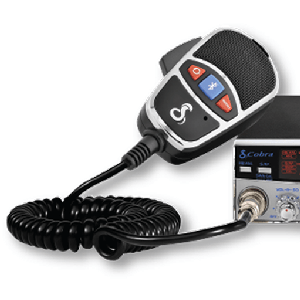

Cobra 29maxmic Replacement Multi Function Microphone For Cobra 29 Lx Max Smart Cb Radio Black Chrome Factory Wired 6 Pin Cobra Bt Mobile Comm Microphones

Diagram 4 Pin Cb Mic Wiring Diagram Full Version Hd Quality Wiring Diagram Tvwiringv Fucinamusicale It

29 lx eu cobra rev.

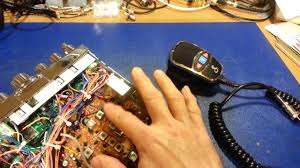

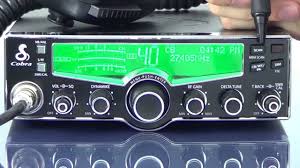

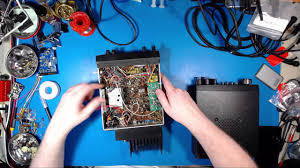

Cobra 29 lx max mic wiring. Microphones wiring color code is not the same as you can see the cb microphone wiring color code is interchanging. All my wires in my mic broke off and i need to put it back together but i can not find a wire diagram any where for it. The 29 lx max is the professional driver s choice for communicating safely easily and legally.

The shield common is a braided or black wire. Wiring for the c29 lx max and the c29ltdbt. I have a cobra 29 lx max.

Cb radio microphone wiring guide. The mod modulation is red. Cobra 146 gtl cobra 21 gtl cobra 29 lx eu cobra uk25ltd cobra uk29ltd st colt excalibur colt 320 244 510 870 colt 210 295 355 720 commtel base station.

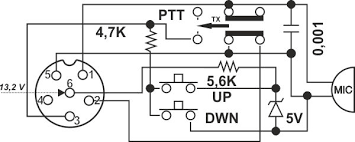

To view microphone wiring configuration click on your chosen cb radio. C29ltdbt and c29 lx max cb microphone wiring. The rec is blue.

The wiring here is. Midland power max midland 099 104 104d midland 095 104gtl midland 76 900 midland. 29 lx max specifications general channels cb 40 ch the cobra 29 lx max transceiver represents one of the frequency range cb 26 965 to 27 405 mhz most ad vanced am two way radios used as a class d wx 162 400 to 162 775 mhz frequency tolerance 0 005.

For example cobra 4 pin radios are wired 1 shield 2 audio 3 transmit 4 receive while midland 4 pin radios are wired 1 audio 2 shield 3 receive 4 transmit. As you can see this. The list below offers some cb microphone wiring information.
