A wiring diagram is a simplified conventional pictorial representation of an electrical circuit. It shows the components of the circuit as simplified shapes, and the power and signal connections between the devices.
Rj45 Network Cable Wiring Diagram. Another way of remembering the colour coding is to simply switch the green set of wires in place. Rj 45 crossover ethernet cable a good way of remembering how to wire a crossover ethernet cable is to wire one end using the t 568a standard and the other end using the t 568b standard. The wiring diagram is shown with the hook clip on the underside.
6wirepatch In Wiring Diagram Ethernet Cable Ethernet Wiring Ethernet Cable Network Cable from www.pinterest.com

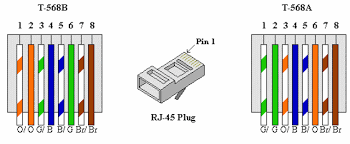

Pinout of ethernet 10 100 1000 mbit cat 5 cat 5e and cat 6 network cable wiringnowdays ethernet is a most common networking standard for lan local area network communication. The wall jack may be wired in a different sequence because the wires may be crossed inside the jack. If you compare the pin functions of both scheme a t568a and scheme b t568b you will find that they are the same and only the wiring colours are different. Rj45 wiring diagram t568b standard wiring scheme b or t568b is used for rj45 wiring and utilises different wiring colours to scheme a or t568a.
This article explain how to wire cat 5 cat 6 ethernet pinout rj45 wiring diagram with cat 6 color code networks have become one of the essence in computer world and for better internet facilities ti gets extremely important to built a good secured and reliable network.
The ethernet cable used to wire a rj45 connector of network interface card to a hub switch or network outlet. The wiring diagram is shown with the hook clip on the underside. The cable is called wipe patch cord straight thru cable. Like you want to connect two routers or two pcs. Pinout of ethernet 10 100 1000 mbit cat 5 cat 5e and cat 6 network cable wiringnowdays ethernet is a most common networking standard for lan local area network communication.
Rj45 Network Cable Wiring Diagram. Crossing over a good way of remembering how to wire a crossover ethernet cable is to wire one end using the t 568a standard and the other end using the t 568b standard. This article explain how to wire cat 5 cat 6 ethernet pinout rj45 wiring diagram with cat 6 color code networks have become one of the essence in computer world and for better internet facilities ti gets extremely important to built a good secured and reliable network.
