2 Way Light Switch Wiring Diagram Old Colours

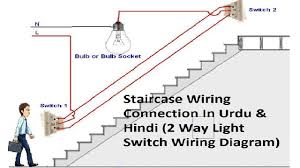

2 way switching means having two or more switches in different locations to control one lamp they are wired so that operation of either switch will control the light.

2 way light switch wiring diagram old colours. Below is the way i like to do it. 2 way light switch wiring diagram old colours to properly read a electrical wiring diagram one provides to find out how the particular components inside the method operate. This arrangement is often found in stairways with one switch upstairs and one switch downstairs or in long hallways with a switch at either end.

Schematic diagram of new wire colours. When you employ your finger or perhaps follow the circuit along with your eyes it s easy to mistrace the circuit. Two way light switching 3 wire system new harmonised cable colours note.

The grey wire in cable d is a switched live and the blue wire in cable c and black wire in cable d are permanent lives and thus should be marked with brown sheathing at each end as shown. A two way switch uk schematic diagram of old wire colours.
