7 Pin Flat Trailer Plug Wiring Diagram

Wiring diagram for 7 pin trailer plug wiring diagram 7 pin trailer plug ford wiring diagram for 7 pin flat trailer plug wiring diagram for 7 pin round trailer plug folks comprehend that trailer is a car comprised of quite complicated mechanics.

7 pin flat trailer plug wiring diagram. Small 7 pin round qld identifying. The 7 pin flat plug will fit into a 12 pin flat socket and work perfectly. I had one vehicle with a 12 pin socket and a trailer with a 7 pin connector and they played happily for years.

Use the 7 pin connector anyway see below and just leave out the last 2 wires. This is an extension of the 7 pin flat. What is the purpose of 12v power on trailer connector for fifth wheel trailer.

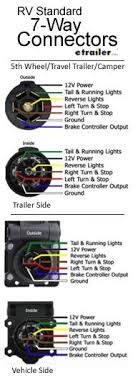

7 way plug wiring diagram standard wiring post purpose wire color tm park light green battery feed black rt right turn brake light brown lt left turn brake light red s trailer electric brakes blue gd ground white a accessory yellow this is the most common standard wiring scheme for rv plugs and the one used by major auto manufacturers today. All diagrams are as viewed from the cable side. Each component ought to be set and connected with different parts in particular manner.

Activating 12 volt accessory circuit to 7 way on 2004 chevy silverado 2500. 5 core does not include the blue and black cables that are traditional used for blue electric brakes black aux reverse most trailers particularly box and standard box trailer use 5 core trailer cable. Plug size is similar to an australian 10c coin.

All diagrams are as viewed from the cable side. Select plug socket type. There are 2 main types of trailer cables that are used for wiring your trailer these are 5 core and 7 core.

Difference between 7 way wiring diagram that uses red wire and purple wire. Kt703m 7 pin flat metal led trailer socket. Brown 7 tail lights clearance markers diagrams are from cable entry view tdr06904 part number 1 6 5 3 2 7 4 tdr06905 part number 4 7.
