7 Pin Trailer Wiring Diagram With Brakes And Battery

Each component ought to be set and connected with different parts in particular manner.

7 pin trailer wiring diagram with brakes and battery. Australian trailer plug and socket wiring diagrams. There are 2 main types of trailer cables that are used for wiring your trailer these are 5 core and 7 core. This automobile is designed not just to travel 1 location to another but also to take heavy loads.

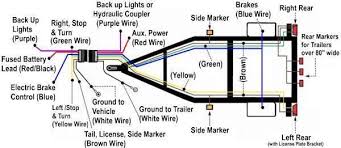

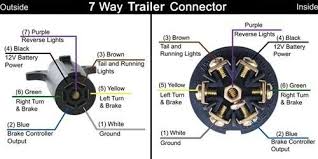

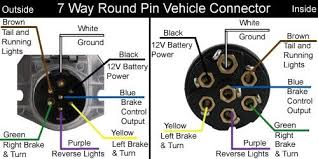

Trailer wiring diagram 7 way with breakaway 7 way trailer plug wiring diagram with breakaway trailer brake wiring diagram 7 way with breakaway trailer wiring diagram 7 way with breakaway people today understand that trailer is a car comprised of rather complicated mechanisms. The tow vehicle is a toyota tundra and has 7 pin round connector. 7 way plug wiring diagram standard wiring post purpose wire color tm park light green battery feed black rt right turn brake light brown lt left turn brake light red s trailer electric brakes blue gd ground white a accessory yellow this is the most common standard wiring scheme for rv plugs and the one used by major auto manufacturers today.

Traditional trailer with brakes use a 5 pin connector. 7 pin trailer wiring diagram with brakes amazing 7 wire trailer 7 pin trailer wiring diagram with brakes. These directions will likely be easy to grasp and apply.

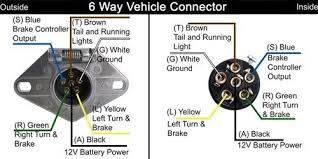

I want the trailer battery to charge from the tundra when the 7 pin is connected. 1 4 wire the first 4 pins white brown yellow green just like the 4 pin connector above. All diagrams are as viewed from the cable side.

Variety of trailer breakaway wiring schematic. Wiring diagram comes with a number of easy to adhere to wiring diagram instructions. A wiring diagram is a simplified conventional photographic depiction of an electric circuit.

It shows the components of the circuit as streamlined shapes and the power and also signal connections in between the devices. Blue electric brakes or hydraulic reverse disable see blue wire notes below in the trailer wiring diagram and connector application chart below use the first 5 pins and ignore the rest. It really is supposed to assist all of the typical person in developing a correct program.
